Risen, as a TIER1 solar panel manufacturer, Risen Energy offers similarly high-standard industrial energy storage solutions for the C&I (Commercial & Industrial) and Utility segments.

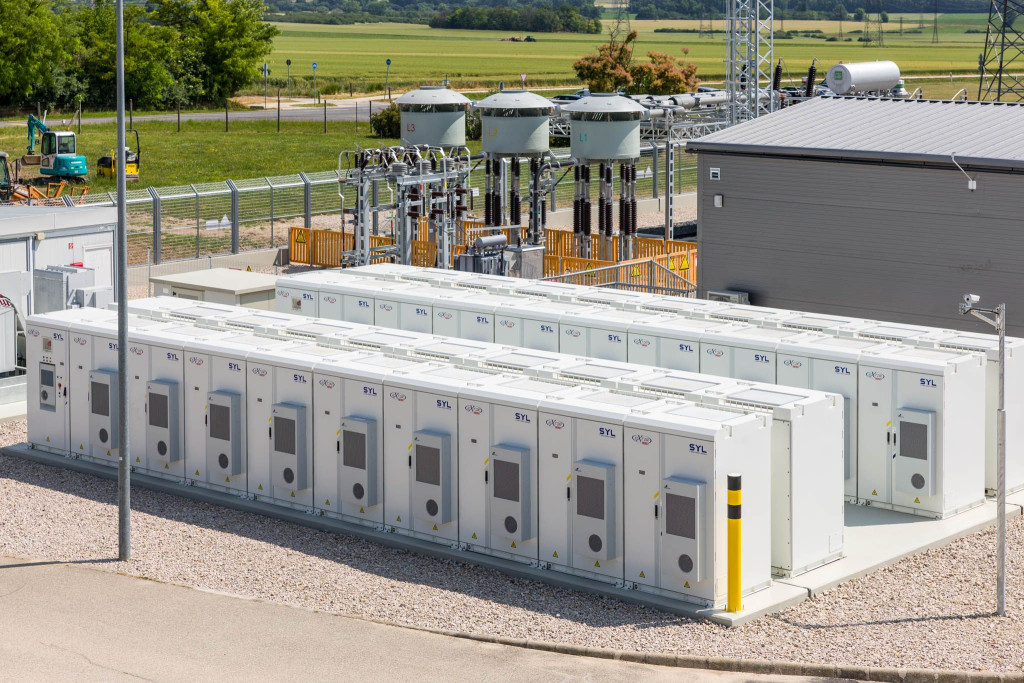

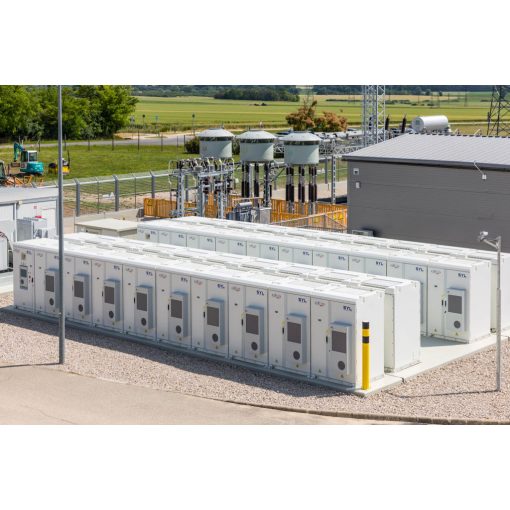

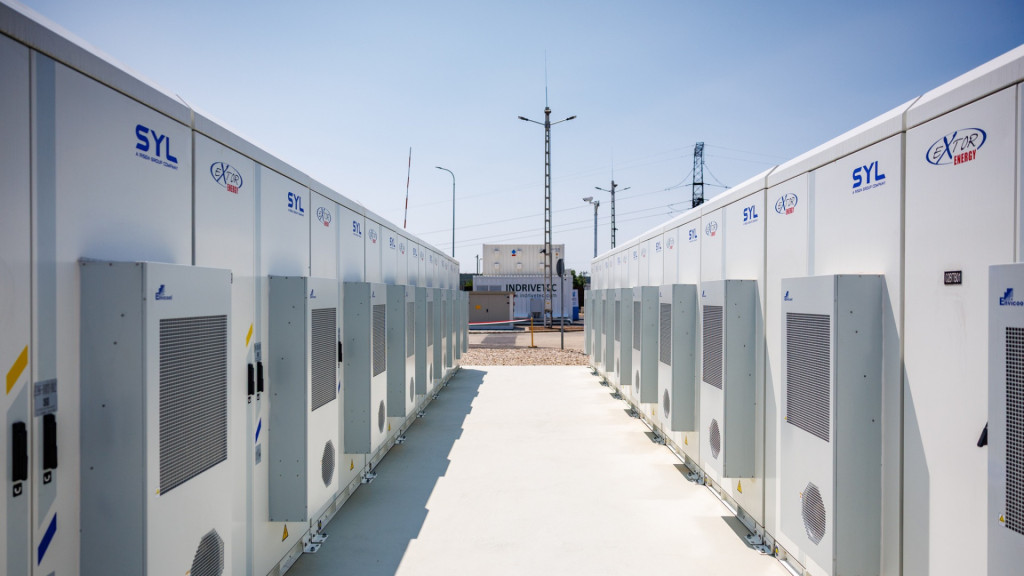

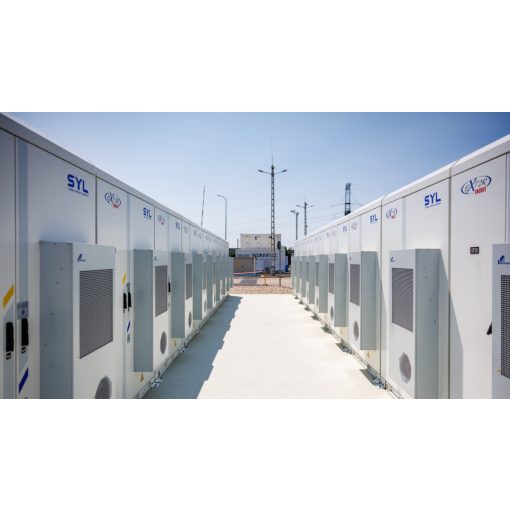

In Hungary, Risen SYL energy storage systems with 5 megawatts of output capacity and 10 megawatt-hours of storage have been installed at the MVM gas turbine power plant in Litér.
Risen SYL Utility Liquid-Cooled Energy Storage System
Specifications
- Nominal AC output power: 418 kW
- Total energy storage capacity: 836 kWh
- Operation: standalone or integrated with any solar PV system (AC-coupled configuration)
- Operating voltage: low-voltage 400 V
- Battery technology: LiFePO4 cells, 98% DOD
- Cooling: modern liquid cooling system for safe operation
- Fire protection: built-in fire suppression system, aerosol & water-based, multi-layered protection
- Protection rating: IP55 – suitable for outdoor installation
- Warranty: design warranty – 5 years
- Energy management and monitoring: built-in EMS, 3rd party EMS compatibility, Risen Cloud platform
- Communication interface: Ethernet
- Noise level: <72 dB (measured at 1 meter)
- Dimensions (W × D × H): 2000 × 2470 × 1720 mm
- Weight: 8000 kg
- Certifications: IEC 62368-1, IEC 62619, IEC 63056, IEC 60730, IEC 62933 (pending)
Advantages
- High capacity and performance: 418 kW / 836 kWh
- Flexible integration: suitable for standalone and solar PV-connected operation
- High safety and efficiency: 98% DOD, advanced cooling and fire protection system
- Outdoor-ready design: IP55 protection for outdoor installations
- Advanced control and monitoring: native EMS, Risen Cloud, 3rd party EMS support
- Application areas: Load curve optimization (peak shaving), Energy arbitrage, Frequency stabilization
- Ideal installation sites: Solar parks, Power plants
