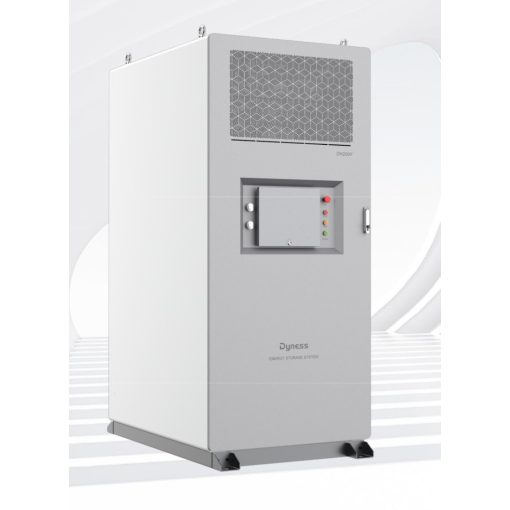

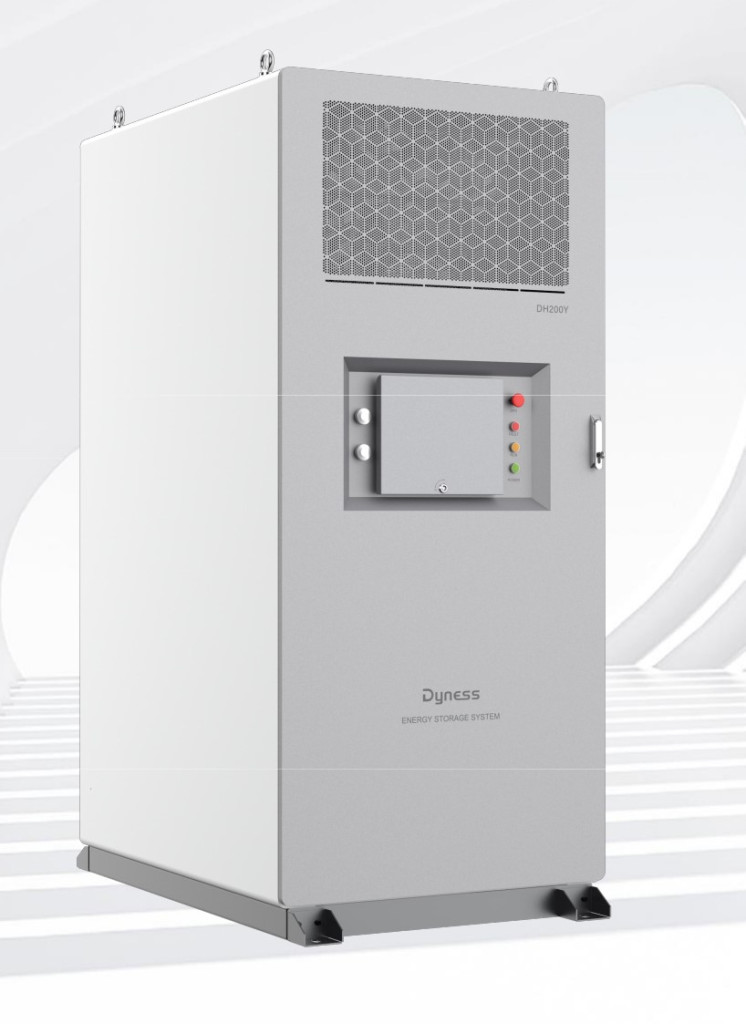

Dyness All-in-One 100kW / 232 kWh (2h) Liquid-Cooled Energy Storage System
Dyness is an innovative energy storage company offering a complete energy storage portfolio.
Specifications
- Nominal AC power output: 100 kW
- Total energy storage capacity: 232 kWh
- Scalability: up to 5 battery cabinets – total capacity of 1.16 MWh
- Operation: standalone or integrated with any solar PV system (AC-coupled configuration)
- Operating voltage: low-voltage 400 V
- Battery technology: LiFePO4 EVE cells
- Cooling: modern liquid cooling system
- Fire protection: built-in fire suppression system, aerosol-based, multi-level safety design
- Protection rating: IP55 – suitable for outdoor installation
- Communication: Ethernet connection
- Dimensions (W × D × H): 1055 × 1645 × 2398 mm
- Weight: 2600 kg
- Warranty: 5 years
- Certifications: IEC62619, UL1973, UL9540A, UN38.3, IEC 62477-1, CE, RoHS
Advantages
- Innovative manufacturing background: Dyness offers a full range of energy storage solutions

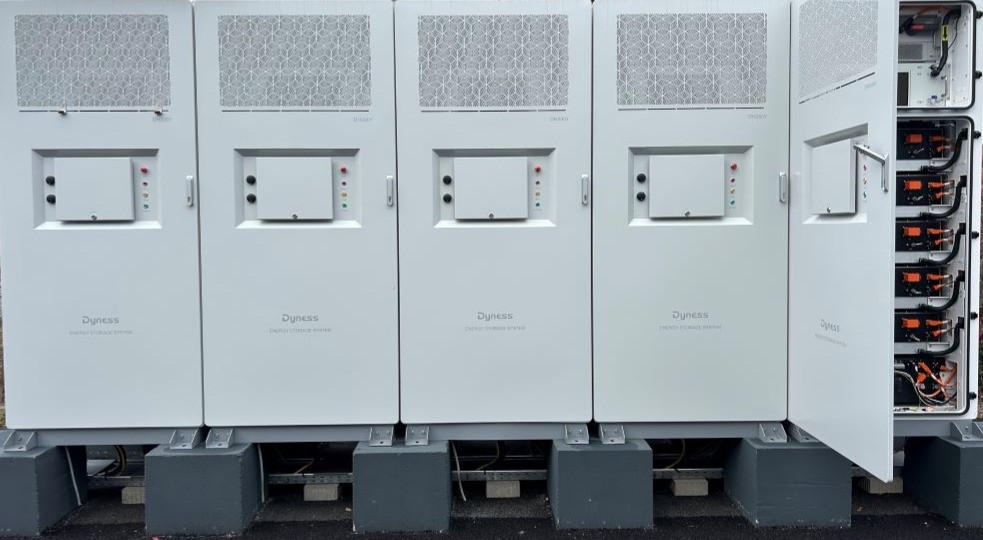

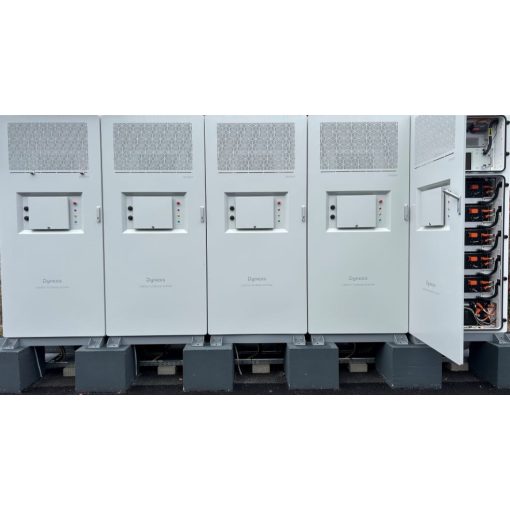

- Modular expandability: scalable up to 1.16 MWh
- Flexibility: compatible with solar PV systems, AC-coupled integration
- Optimized for the Hungarian market: includes DSO-approved PCS and all required certifications
- Comprehensive system control: built-in EMS and monitoring, 3rd party EMS compatibility
- Application areas: load curve optimization (peak shaving), energy arbitrage, frequency stabilization
- Ideal installation sites: solar PV power plants, industrial parks, manufacturing plants, office buildings, energy trading projects
